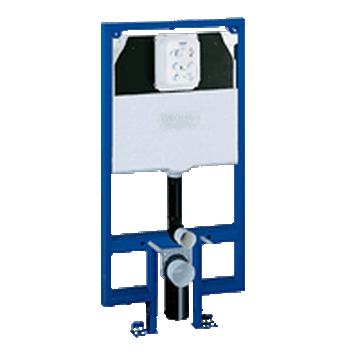

Rapid SL for WC
for small, narrow bathrooms
flushing cistern 80 mm
with small maintenance access

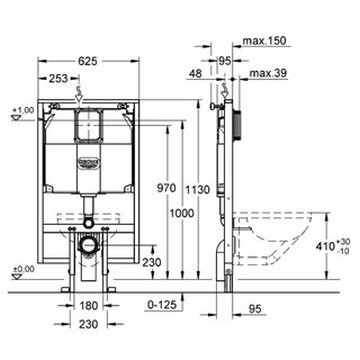

1.13 m installation height
element width 0.62 m
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single installation
quick adjustment, lockable
fixing material
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend ø 80 mm
depth adjustable
reducer Ø 80/100 mm
inlet and outlet connecting set
flushing cistern 80 mm, 6 - 9 l
adjustment ex factory 6 l and 3 l
pneumatic discharge valve offering
3 modes of operation: dual flush or
start/stop or non-interruptible
water supply from top or back
low noise (group I acc. to
German Noise Specification)
insulated against condensation
water supply ½" and push fit flexible hose union
no tools required for the installation
of the inspection shaft incl. protection
during construction phase,
for vertical use
accessories for on-the-wall installation
GROHE EcoJoy® technology for
less water and perfect flow
|
