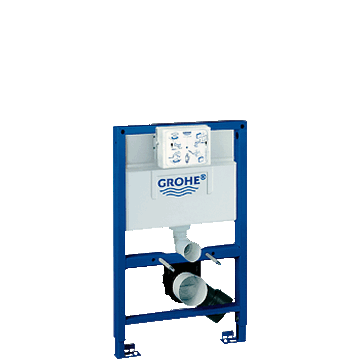

Rapid SL for WC
with flushing cistern 4.5 - 9 l
for on-the-wall installations or studded walls
0.82 m installation height
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single or rail installation
quick adjustment, lockable
fixing material
TÜV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend ø 80 mm
reducer Ø 80/100 mm
inlet and outlet connecting set
flushing cistern 4.5 - 9 l
pneumatic discharge valve offering
3 modes of operation: dual flush or
start/stop or non-interruptible
front or top actuation
water supply from left/right or back
low noise (group I acc. to
German Noise Specification)
test approval applied for
insulated against condensation
½" water supply connection including integrated
angle valve and push fit flexible hose union
without accessories for on-the-wall
installation
without wall plate/actuation
|
